Water Pump Diesel Engine Maximum Head 28m Low Noise Dry Priming Pump Agricultural Water Pump

Zhejiang Sanrock Power Machinery Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

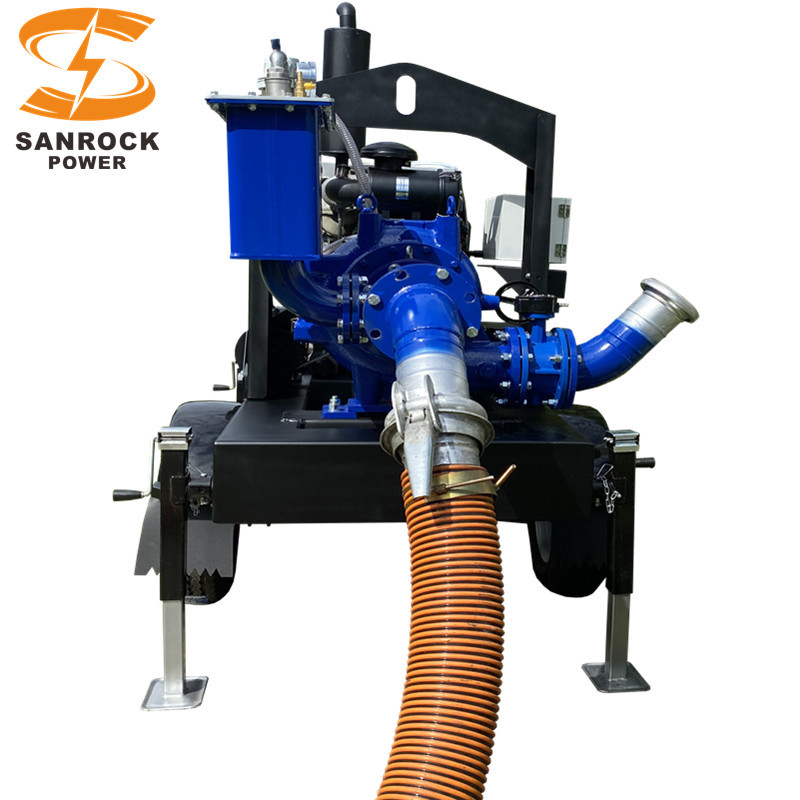

Water Pump Diesel Engine Maximum Head 28m Low Noise Dry Priming Pump Agricultural Water Pump

Brand Name : SANROCK POWER

Model Number : SPGXD66S12P

Certification : OEM, ODM, OBM

Place of Origin : Zhejiang, China

MOQ : 1 set

Price : Chat with supplier now for more details.

Payment Terms : MoneyGram,Western Union,T/T,D/P,D/A,L/C

Supply Ability : 100000set/month

Delivery Time : 18-30work days Shipping fee and delivery date to be negotiated.

Packaging Details : Nude package for machines, Wooden box package for spare parts, Or customer demand.

Power source : Diesel Engine

Structure : Single-stage Pump

Fuel : Centrifugal

Application : Construction | Industrial | Municipal | Mining

Product name : Dry priming pump

Advantage : Long Working Life

Theory : Centrifugal Pump

model number : T 6

Max Flow : 325m3/h

Max Head : 32m

Max Solide : 76.2mm (3'')

Self-priming : 7.6m

Impeller dia : 314.32mm

R.P.M : 1500rpm

horsepower : 50 HP

suction/Dishch suction/Dishch : 6 inches

Contact Now

Water Pump Diesel Engine Maximum Head 28m Low Noise Dry Priming Pump Agricultural Water Pump

Water Pump Diesel Engine Maximum Head 28m Low Noise Dry Priming Pump Agricultural Water Pump

Water Pump Diesel Engine Maximum Head 28m Low Noise Dry Priming Pump Agricultural Water Pump

Water Pump Diesel Engine Maximum Head 28m Low Noise Dry Priming Pump Agricultural Water Pump

Water pumps play a vital role in modern agricultural irrigation systems, efficiently delivering water from sources such as wells, rivers, lakes, or reservoirs to agricultural fields. By utilizing centrifugal pumps, submersible pumps, or solar-powered pumps, these systems ensure a reliable water supply for crops, even in areas with limited rainfall or uneven terrain. Equipped with adjustable flow rates and pressure controls, agricultural pumps optimize water distribution through methods like drip irrigation, sprinklers, or flood irrigation, reducing water waste and enhancing resource efficiency. Advanced models may incorporate smart sensors or IoT technology to automate irrigation schedules based on soil moisture levels and weather forecasts. By enabling precise and scalable water management, pumps empower farmers to boost crop yields, conserve water resources, and adapt to changing climate conditions, thereby supporting sustainable agriculture and food security.

Product Application
Self suction sewage pump, self suction drainage pump unit and diesel engine mobile trailer are new international self suction sewage units.  The utility model is suitable for outdoor use. high self suction, no blockage, convenient movement and simple operation without the power supply of the city power supply and the sewage impurities.

Main Features

1.Easy to install and easy to operate, in the control cabinet display period, you can directly view the pump and diesel engine operating parameters

2.Sewage capacity is large, the maximum amount of impurities through 76.2mm

3.Strong self-priming capacity, up to 7.6 meters

4.Design user-friendly, quick to the debris port, the fastest speed can troubleshoot.

5.When the equipment is out of order, the control cabinet will alarm automatically and show the cause of the trouble.Ensure safe operation of equipment.




Water Pump Diesel Engine Maximum Head 28m Low Noise Dry Priming Pump Agricultural Water Pump

Water Pump Diesel Engine Maximum Head 28m Low Noise Dry Priming Pump Agricultural Water Pump

Water Pump Diesel Engine Maximum Head 28m Low Noise Dry Priming Pump Agricultural Water Pump

Water Pump Diesel Engine Maximum Head 28m Low Noise Dry Priming Pump Agricultural Water Pump





Main Usage as below:
  Construction   Industrial   Municipal
  Agricultural   Mining   Dewatering
  Industrial Waste   Sewage   Oil Field
Main Usage as below:
  Construction   Industrial   Municipal
  Agricultural   Mining   Dewatering
  Industrial Waste   Sewage   Oil Field
  Petrochemical   Paper Mills   Processing

Can you do OEM for me?

We accept all OEM orders,just contact us and give me your design. we will offer you a reasonable price and make samples for you ASAP.

How can I place the order?

Sign the PI,pay deposit,we will arrange the production. After finished production pay balance. Finally we will  ship the goods.

Warranty service


Product Description




T-6 PUMP
Max Flow
325m3/h
Max Head
32m
Max Solide
76.2mm (3'')
Self-priming
 7.6m
Impeller dia
314.32mm
R.P.M
1500rpm


Material
Pump casing
Cast iron HT250
Impeller
Nodular cast iron
Shaft
40CR




Engine
Model
D226B-3D
No. of cylinders
3
Cooling method
water-cooling
Speed control type
Mechanical speed regulation
Start-up mode
DC start, and equipped with silicon rectifier charging generator
Total engine displacement
3.12L


 Trailer
Tyre
2pcs
Support foot
4pcs
Tank capacity
80L
load
2000KG
NO Name Qty NO Name Qty
1 Bare pump 1 Set 10 Wacuum system 1 Suit
2 ※Diesel engine 1 Set 11 Adjust valves 1 Pcs
3 ※Diesel engine control system 1 Suit 12 Inlet pipe 1 PcS
4 Battery 1 Suit 13 Outlet pipe 1 Pcs
5 Battery case 1 Pcs 14 Inlet quick coupling 1 Pcs
6 Coupling 1 Suit 15 Outlet quick couping 1 Suit
7 Trailer/ skid 1 Suit 16 Tool kit 1 Suit
8 Fuel tank 1 Suit 17 Service kit 1 Suit
9 Vacuum system 1 Suit



model Max flow m³/h Max head m Shaft power KW speedr'min inlet/outlet mm Max solid mm
SPGX44S8P 315 37.5 40HP 2200 100 50
SPGX44S10P 380 45 50HP 2000 100 76
SPGX86S14P 1300 59 110KW 2000 150 80
SPGX88S15P 1800 60 150KW 2000 200 95
SPGX1010S15P 2100 59 200KW 2000 250 100
SPGX1212S16P 2800 60 250KW 2000 300 100
SPGXG64S14P 500 90 127KW 2200 150/100 76
SPGXG64S17P 730 153 400KW 2100 150/100 75
SPGXG86S15P 1600 96 220KW 2200 200/150 80
SPGXG88S16P 1750 96 270KW 2200 200/200 95
SPGXG108S17P 1886 133 550KW 2000 250/200 80
SPGXG-12P 2080 120 450KW 1500 300/300 76

Water Pump Diesel Engine Maximum Head 28m Low Noise Dry Priming Pump Agricultural Water Pump

Water Pump Diesel Engine Maximum Head 28m Low Noise Dry Priming Pump Agricultural Water Pump



Water Pump Diesel Engine Maximum Head 28m Low Noise Dry Priming Pump Agricultural Water Pump

Water Pump Diesel Engine Maximum Head 28m Low Noise Dry Priming Pump Agricultural Water Pump

Water Pump Diesel Engine Maximum Head 28m Low Noise Dry Priming Pump Agricultural Water Pump

Water Pump Diesel Engine Maximum Head 28m Low Noise Dry Priming Pump Agricultural Water Pump

Water Pump Diesel Engine Maximum Head 28m Low Noise Dry Priming Pump Agricultural Water Pump


Water Pump Diesel Engine Maximum Head 28m Low Noise Dry Priming Pump Agricultural Water Pump

Water Pump Diesel Engine Maximum Head 28m Low Noise Dry Priming Pump Agricultural Water Pump

Water Pump Diesel Engine Maximum Head 28m Low Noise Dry Priming Pump Agricultural Water Pump

Water Pump Diesel Engine Maximum Head 28m Low Noise Dry Priming Pump Agricultural Water Pump

Water Pump Diesel Engine Maximum Head 28m Low Noise Dry Priming Pump Agricultural Water Pump

Water Pump Diesel Engine Maximum Head 28m Low Noise Dry Priming Pump Agricultural Water Pump

Water Pump Diesel Engine Maximum Head 28m Low Noise Dry Priming Pump Agricultural Water Pump

FAQ
1. how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;


2.what can you buy from us?
Screw Air Compressor,Reefer Container Generator,Diesel Generator,Light Tower,Sewage Pump,Centrifugal Pump,Fire Pump System,Mobile Pump Truck


3. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,Western Union,Cash;
Language Spoken:English,Chinese,Spanish
